Utilisation of Cardiac Holter monitoring and Echocardiography following Acute Ischemic Stroke or Transient Ischemic Attack

Introduction

Acute ischemic stroke stands as one of the foremost contributors to global morbidity and mortality, imposing a substantial burden on healthcare systems.¹ It is estimated that stroke affects approximately 1.1 million individuals in Europe annually ²and ranks as the second leading cause of death across the continent.³ The ramifications of stroke are not only profound for patients but also strain healthcare systems, a pressure that is anticipated to intensify over time due to the ageing population.⁴

According to the 2020 report "The Burden of Stroke in Europe" conducted by King’s College London, the healthcare cost attributed to stroke in Malta approximates 8.8 million euros. This is coupled with an estimated annual incidence of 325 diagnosed stroke cases and a mortality rate of 272 stroke-related deaths. Projections also indicate a foreseen 66% surge in incidence by the year 2035.⁵

Given this landscape, it becomes imperative for the healthcare system to proactively engage in stroke prevention and execute robust measures for secondary prevention. Ischemic stroke can arise from various factors, including thrombosis, hypoperfusion, and embolic phenomena ⁶ . Among these, embolic stroke can be categorised into artery-to-artery embolism and non-artery-to-artery sources. The evaluation of non-artery-to-artery sources necessitates a comprehensive investigation into potential embolic sources, typically encompassing cardiac monitoring and a transthoracic echocardiogram (TTE). TTE is the first line imaging used in Malta in view of its high sensitivity (95%) and specificity (85-90%) for detection of left ventricle (LV) thrombi.

A substantial proportion of ischemic strokes can be attributed to embolic phenomena associated with atrial fibrillation (AF) ^7,8 , underscoring its significant contribution to stroke-related morbidity and mortality.^9,10 European population estimates suggest a prevalence of atrial fibrillation in the range of 1% to 2%.¹¹ This risk of stroke, secondary to AF, rises dramatically to 23.5% in patients aged 80 to 89.⁸ Remarkably, around 25% of ischemic strokes are linked to AF, yet this figure is likely an underestimate due to the substantial undiagnosed cases of AF.¹²

Given the intermittent nature of AF, a considerable number of affected patients exhibit normal sinus rhythm on electrocardiogram (ECG) readings during their hospital stay, leading to undetected cases. The optimal secondary prevention strategy for embolic stroke arising from AF involves anticoagulation. However, initiating anticoagulation necessitates the prior detection and documentation of AF on an ECG.^13,14 Thus, timely identification of AF becomes a pivotal element in secondary stroke prevention, facilitating the timely initiation of anticoagulation treatment and ultimately reducing the risk of recurrent ischemic strokes ^15,16. Anticoagulation is superior to aspirin or clopidogrel and decreases the risk of embolisation by 70%.⁶

Owing to the paroxysmal nature of AF, ESO guidelines recommend that inpatient cardiac monitoring is performed followed by outpatient cardiac monitoring after discharge. Holter monitoring is the most widely used diagnostic tool for non-invasive continuous cardiac monitoring in stroke patients.

This study aims to audit the time interval between stroke event and outpatient cardiac holter monitoring and TTE, while also scrutinising adherence to recommendations by the latest ESO guidelines regarding the detection of subclinical AF in the secondary prevention of stroke/TIA.

Materials and methods

The clinical audit was conducted at Mater Dei Hospital in Malta. Inclusion criteria encompassed patients admitted to the NeuroMedical ward with a diagnosis of ischemic cerebrovascular accident (CVA) or TIA between January 1, 2022, and June 30, 2022, who had either an outpatient TTE or a cardiac holter booked. Retrospective data was obtained from patient records including iCM, CVIS, electronic case summaries. Demographic data and the number of days between the booking and performance of the TTE and/or cardiac Holter were documented using a Microsoft Excel spreadsheet.

The audit encompassed 63 patients with a scheduled outpatient cardiac holter and 71 patients with a scheduled outpatient TTE, aiming to assess potential embolic sources post-stroke. Patients admitted for CVA/TIA within the study's six-month duration who did not meet the inclusion criteria were excluded.

By thoroughly reviewing electronic patient records, the resultant report of the local utilization of outpatient cardiac monitoring and TTE after ischaemic stroke/TIA was compared to evidence based recommendations by the European Stroke Organisation (ESO).

In compliance with data protection regulations, necessary clearance was obtained from Mater Dei Hospital to access patient data. All accessed patient data adhered to the relevant data protection and privacy regulations. Furthermore, all data was analysed in an anonymized format to ensure confidentiality and privacy.

Results

Holter Monitoring

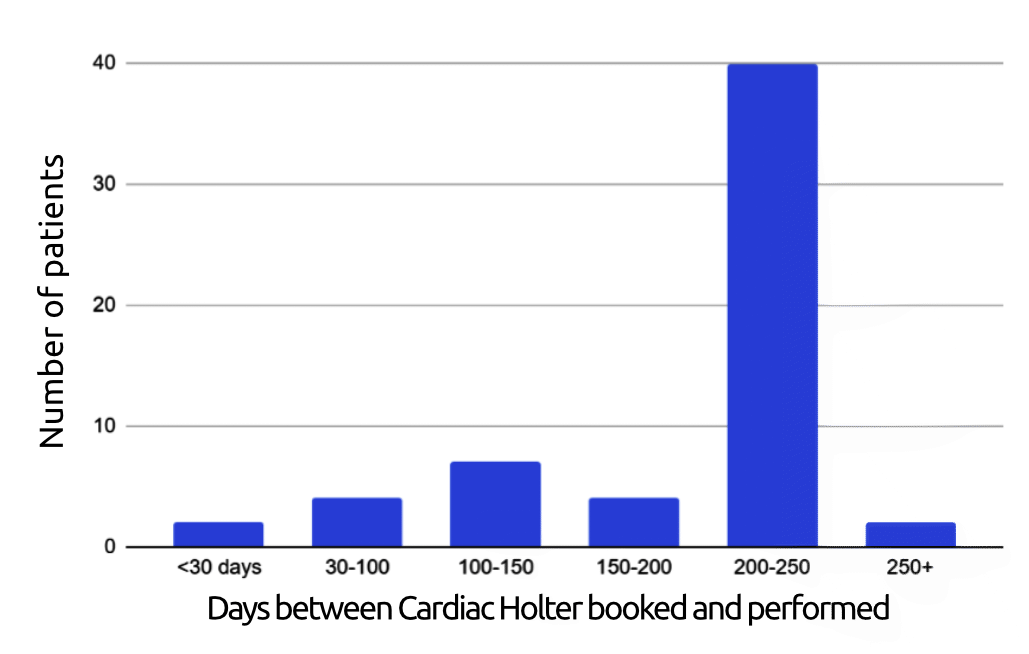

A total of 63 outpatient cardiac Holter monitors were scheduled following ischemic stroke or TIA during the audit period. Five patients did not attend their appointments and were not offered alternative dates, while four patients had Holter monitoring requested but were not assigned a specific appointment date. As shown in Figure 1, 71% of patients experienced waiting times exceeding 200 days before monitoring was performed. Notably, two patients who were awaiting their outpatient Holter appointment were admitted with new-onset atrial fibrillation prior to their scheduled investigation.

Figure 1

Days between Cardiac Holter booked and performed

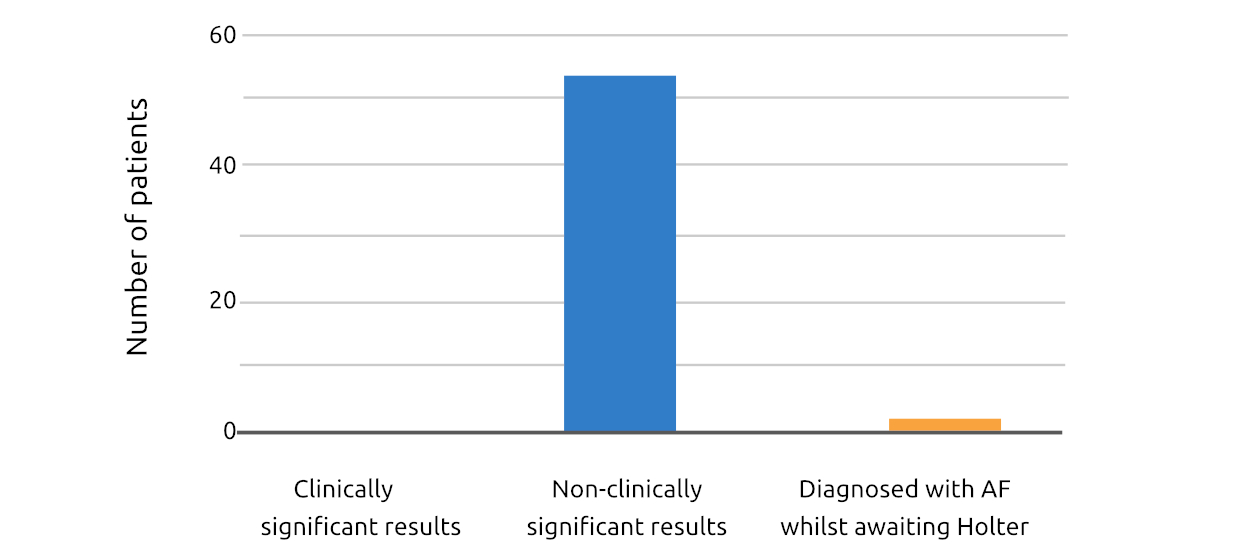

Of the 63 scheduled holter monitors, 54 were ultimately performed. None of these investigations detected previously undiagnosed atrial fibrillation (Figure 2). It is pertinent to mention that all of these holter monitors were configured as 24-hour monitors. Of note, three patients with previously diagnosed atrial fibrillation were also scheduled for outpatient Holter monitoring.

Figure 2

Days between TTE booked and performed

Echocardiography

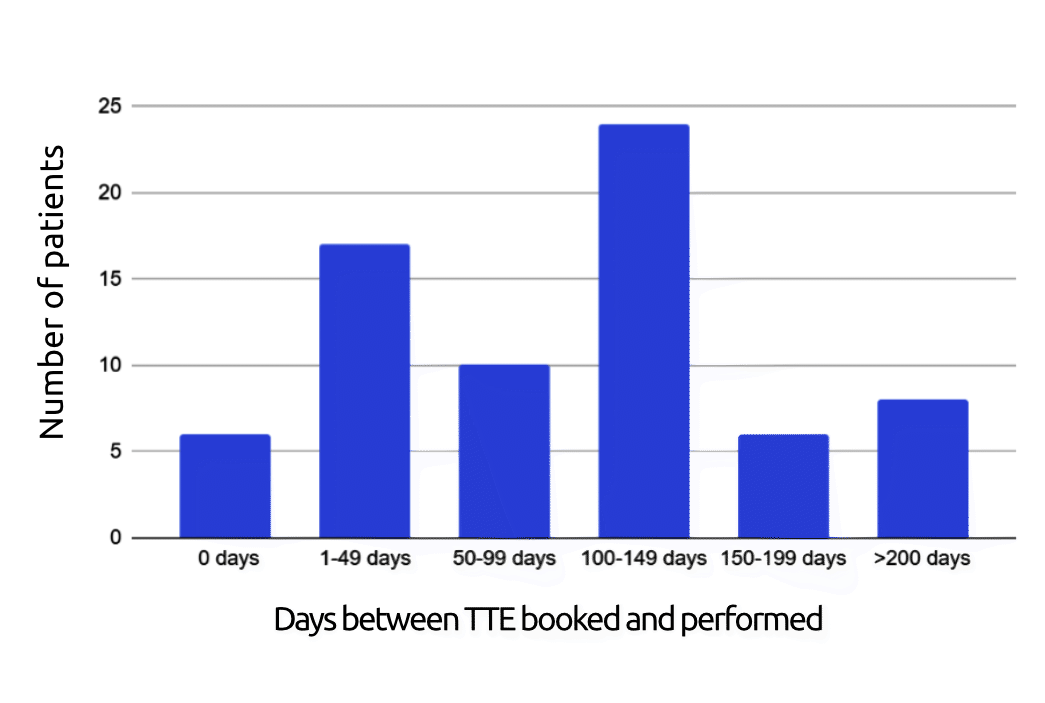

Figure 3 demonstrates that 8.45% of patients underwent TTE as inpatients, whereas the majority (33.8%) waited between 100 and 149 days for an outpatient TTE appointment.

Figure 3

Outcome of performed TTEs

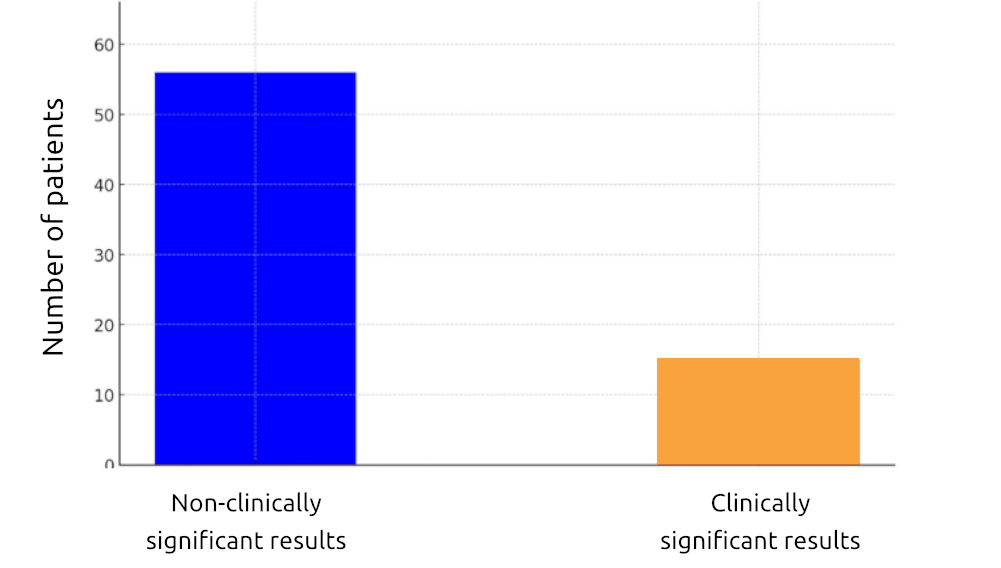

A total of 71 echocardiograms were performed (Figure 4), of which 15 demonstrated high-risk findings according to the National Clinical Guidelines for Stroke for the UK and Ireland. These included atrial fibrillation, valvular pathology, left ventricular outflow tract obstruction, frequent ventricular ectopy, and impaired global left ventricular systolic function. Overall, 21.12% of investigations yielded clinically relevant findings.

Figure 4

Outcome of performed TTE's

Among the 38 patients with a waiting time exceeding 100 days for TTE, 31.6% demonstrated significant findings.

Nineteen patients in the cohort were under the age of 55 years. Of these, only five underwent a bubble study, with one study demonstrating a patent foramen ovale (PFO). One patient did not undergo a bubble study as a previously documented PFO had been identified during prior admissions.

Discussion

This audit evaluated the utilisation and timing of cardiac Holter monitoring and TTE following ischemic stroke or TIA, highlighting significant delays in access to these investigations and potential implications for secondary stroke prevention.

A key finding was the prolonged waiting time for outpatient cardiac Holter monitoring, with the majority of patients waiting more than 200 days before monitoring was performed. Such delays may hinder the timely detection of AF, a major cause of cardioembolic stroke. Early identification of AF is essential to allow prompt initiation of anticoagulation therapy and reduce the risk of recurrent stroke. The observation that two patients were admitted with new onset AF while awaiting Holter monitoring further emphasises the clinical significance of these delays.

Despite 54 outpatient Holter monitors being performed, no cases of previously undiagnosed AF were detected. This low detection rate may partly reflect the exclusive use of 24-hour monitoring in this cohort. Increasing evidence demonstrates that prolonged cardiac monitoring improves AF detection rates in patients with cryptogenic stroke. A recent randomised study focused on stroke survivors without known AF demonstrated that employing a 10-day Holter after a stroke increased the AF detection rate to 13.5%. In comparison, a group of patients subjected to 24-hour ECG holter monitoring exhibited a detection rate of 4.5%.¹⁷ However, determining the optimal monitoring duration remains challenging, as excessively prolonged monitoring may not always be feasible or cost-effective.

Additionally, the audit highlighted the need for adherence to ESO guidelines, particularly for patients above 55 years of age. ESO guidelines recommend that patients older than 55 years undergo early inpatient ECG monitoring, followed by outpatient cardiac monitoring exceeding 48 hours. Interestingly, our study encompassed 41 patients aged 55 and above, yet none of them received outpatient cardiac monitoring exceeding 48 hours, raising concerns about the efficacy of the current monitoring practices in this population. The guidelines further advocate for the use of implantable monitoring devices, particularly for patients above 55 with cryptogenic stroke, as opposed to non-implantable devices, to enhance the detection of paroxysmal AF. However, this study did not gather data on the utilisation of implantable cardiac monitoring. Although implantable devices exhibit an elevated AF detection rate when compared to external loop recorders, this discrepancy appears to be attributed to the longer monitoring duration rather than an increased capacity of the device to detect AF.

Potential inefficiencies in resource utilisation were also identified, as three patients with an established diagnosis of AF were scheduled for outpatient Holter monitoring.

The implications of over 70% of patients enduring waiting times exceeding 200 days for outpatient cardiac holter monitoring subsequent to an ischemic CVA/TIA are twofold. Primarily, this delay hinders the timely initiation of appropriate AF treatment, namely anticoagulant therapy. During this interim period, patients are susceptible to developing recurrent strokes or other complications associated with AF. Secondly, for those individuals whose AF is detected more than 200 days following the cerebrovascular event, the substantial passage of time raises questions about whether AF was indeed the cause of the initial stroke or a subsequent discovery.

Delays were similarly observed in the utilisation of TTE following stroke or TIA, with many patients experiencing waiting times exceeding 100 days. Echocardiography is important in identifying structural cardiac abnormalities and potential cardioembolic sources that may influence management. Among the 38 participants subjected to a TTE waiting time of >100 days, 31.6% exhibited significant findings. Hence, in these 31.6% there was a delay in initiation of anticoagulation as observed when applying the ‘1-3-6-12 days rule' ²⁰, introduced by the European Heart Rhythm Association of the European Society of Cardiology in 2013.²¹ This rule recommends the commencement of anticoagulants one day after TIA, three days after minor stroke (NIHSS score <8), six days after mild stroke (NIHSS score 8-15), and twelve days after moderate-to-severe stroke (NIHSS >15).

The most clinically significant management step following TTE findings is the initiation of oral anticoagulants upon detecting atrial or ventricular thrombi.²² Patients with known AF and/or who are already on anticoagulation, do not gain additional benefit from post CVA TTE.²³ In Malta, this practice is reflected as outpatient TTE are not scheduled for patients previously anticoagulated. Conversely, an article by the 'Journal of the American Heart Association' emphasizes the significance of also performing a TTE in patients already on direct oral anticoagulant therapy to assess comorbid cardiovascular conditions and to understand the primary event ²²

TTE has limited sensitivity for detecting left atrial thrombi, a common cardioembolic source associated with AF.¹⁹ TOE offers greater sensitivity and specificity and may be considered when TTE images are suboptimal or clinical suspicion remains high despite a negative TTE. However, clear guidance on when TOE should be preferred over TTE in post-stroke evaluation remains lacking.

PFO is recognized as a predisposing factor for TIA or stroke, serving as a conduit for paradoxical emboli or thrombi of fat or air from venous to arterial circulation.¹⁸ The audit encompassed 19 patients who were less than 55 years, however only 5 of these patients had a bubble study performed. In Malta, bubble studies are performed in patients less than 55 years. A limitation of our study is the lack of active tracking of the number of bubble studies scheduled and the associated clinical indications. However, only bubble studies which were incidentally found when looking up software data collection on echocardiograms were documented. Moreover, this data emphasises the importance of enforcing the use of bubble studies in patients less than 55 years who sustained an ischemic stroke or TIA.

Limitations of the audit

Retrospective Design: The audit relied on retrospective data from patient records, which may be subject to incomplete or inconsistent documentation. This could introduce bias or inaccuracies in the analysis, impacting the reliability of the results.

Small Sample Size: The audit included a limited number of patients within a specific timeframe. A larger sample size might provide more robust conclusions and better representation of the target population.

Resource Limitations: The audit did not explore resource constraints within the healthcare system that could contribute to delays in outpatient monitoring. Factors such as staffing shortages, equipment availability, or administrative processes might influence the timeliness of appointments and affect the feasibility of implementing certain recommendations.

Limited Understanding of Patient Non-Attendance: The audit did not explore the reasons why some patients did not attend their scheduled outpatient holter or TTE appointments. Similarly, the audit did not investigate why alternative dates were not offered to patients who missed their appointments.

Recommendations

The findings of this audit underscore the critical need for refinement in the utilisation and timing of outpatient cardiac monitoring and echocardiography following ischemic stroke or TIA. Based on the evidence gathered, several key recommendations emerge:

• Appointment scheduling should be optimised to ensure timely cardiac monitoring following stroke or TIA. A vetting system could prioritise outpatient Holter monitoring and TTE for these patients while ensuring appropriate utilisation by excluding those already anticoagulated or with contraindications to anticoagulation.
• Extended monitoring duration: Cardiac monitoring should be extended beyond 24 hours, aligning with ESO recommendations of ≥48-hour outpatient monitoring in patients >55 years.
• Implantable Monitoring Devices: Given the increased detection rates observed with implantable monitoring devices in patients above 55 years, healthcare facilities should explore the integration of these devices into their monitoring protocols.
• Consider TOE in selected cases where TTE is inconclusive or when clinical suspicion remains high despite a negative TTE.

Conclusion

This audit highlights significant delays in the utilisation of outpatient cardiac holter monitoring and transthoracic echocardiography following ischemic stroke or transient ischemic attack, with waiting times exceeding 200 days and 100 days respectively in a substantial proportion of patients. These delays may limit timely identification of cardioembolic sources and opportunities for secondary stroke prevention.

Improving appointment scheduling and introducing a structured vetting system could prioritise post-stroke/TIA patients while ensuring investigations are appropriately allocated. In addition, local practice should consider extending cardiac monitoring beyond the conventional 24-hour period, in line with the recent ESO recommendations supporting at least 48 hours of monitoring in patients over 55 years, and exploring the role of implantable monitoring devices to improve atrial fibrillation detection.

Overall, optimising access to and selection of cardiac investigations has the potential to improve secondary stroke prevention and patient outcomes.

References

1. Johnson CO, Nguyen M, Roth GA, GBD 2016 Stroke Collaborators. Global, regional, and national burden of stroke, 1990–2016: a systematic analysis for the global burden of disease study 2016. Lancet Neurol. 2019;18:(5)439–458.
2. Béjot Y, Bailly H, Durier J, Giroud M. Epidemiology of stroke in Europe and trends for the 21st century. Presse Med. 2016 Dec;45(12 Pt 2):e391-e398.
3. Wilkins E, Wilson L, Wickramasinghe K, et al. European Cardiovascular Disease Statistics 2017. Brussels: European Heart Network; 2017.
4. Bennett DA, Krishnamurthi RV, Barker-Collo S, Forouzanfar MH, Naghavi M, Connor M, Lawes CM, Moran AE, Anderson LM, Roth GA, Mensah GA, Ezzati M, Murray CJ, Feigin VL; Global Burden of Diseases, Injuries, and Risk Factors 2010 Study Stroke Expert Group. The global burden of ischemic stroke: findings of the GBD 2010 study. Glob Heart. 2014 Mar;9:(1)107-12.
5. Wafa HA, Wolfe CDA, Emmett E, Roth GA, Johnson CO, Wang Y. Burden of Stroke in Europe: Thirty-Year Projections of Incidence, Prevalence, Deaths, and Disability-Adjusted Life Years. Stroke. 2020 Aug;51:(8)2418-27.
6. Ibrahim F, Murr NI. Embolic Stroke (Archived) [Updated 2022 Oct 17]. In: StatPearls [Internet]. Treasure Island (FL): StatPearls Publishing; 2026 Jan-. Available from: https://www.ncbi.nlm.nih.gov/books/NBK564351/#
7. Flint AC, Banki NM, Ren X, et al. Detection of paroxysmal atrial fibrillation by 30-day event monitoring in cryptogenic ischemic stroke: the Stroke and Monitoring for PAF in Real Time (SMART) registry. Stroke 2012;43:2788–90.
8. Wolf PA, Abbott RD, Kannel WB. Atrial fibrillation as an independent risk factor for stroke: the Framingham study. Stroke 1991;22:983–8.
9. Sposato LA, Cipriano LE, Saposnik G, et al. Diagnosis of atrial fibrillation after stroke and transient ischaemic attack: a systematic review and meta-analysis. Lancet Neurol 2015; 14: 377–87.
10. Tu HT, Campbell BC, Christensen S, et al. Pathophysiological determinants of worse stroke outcome in atrial fibrillation. Cerebrovasc Dis 2010; 30: 389–95.
11. Chugh SS, Havmoeller R, Narayanan K, et al. Worldwide epidemiology of atrial fibrillation: a Global Burden of Disease 2010 Study. Circulation 2014; 129: 837–47.
12. Sanna T, Diener HC, Passman RS, et al. Cryptogenic stroke and underlying atrial fibrillation. N Engl J Med 2014; 370: 2478–86.
13. Ruff CT, Giugliano RP, Braunwald E, et al. Comparison of the efficacy and safety of new oral anticoagulants with warfarin in patients with atrial fibrillation: a meta-analysis of randomised trials. Lancet 2014; 383: 955–62.
14. Hindricks G, Potpara T, Dagres N, et al. 2020 ESC guidelines for the diagnosis and management of atrial fibrillation developed in collaboration with the European Association for Cardio-Thoracic Surgery (EACTS): the task force for the diagnosis and management of atrial fibrillation of the European Society of Cardiology (ESC) developed with the special contribution of the European Heart Rhythm Association (EHRA) of the ESC. Eur Heart J. 2021; 42: 373– 498.
15. Kirchhof P, Benussi S, Kotecha D, et al. 2016 ESC guidelines for the management of atrial fibrillation developed in collaboration with EACTS. Eur Heart J. 2016;37:2893–962.
16. Powers WJ, Rabinstein AA, Ackerson T, et al. Guidelines for the early management of patients with acute ischemic stroke: 2019 update to the 2018 guidelines for the early management of acute ischemic stroke. Stroke. 2019;50:1–75.
17. Wachter R, Groschel K, Gelbrich G, et al. Holter-electrocardiogram-monitoring in patients with acute ischaemic stroke (Find-AFRANDOMISED): an open-label randomised controlled trial. Lancet Neurol. 2017; 16: 282–290)
18. Crow J, Smith A. National Clinical Guideline for Stroke for the United Kingdom and Ireland: Part I - An overview of the updated recommendations. Br J Occup Ther. 2023 Oct;86:(10)661-4.
19. Nakanishi K, Homma S. Role of echocardiography in patients with stroke. J Cardiol. 2016 Aug;68:(2)91-9.
20. Seiffge DJ, Werring DJ, Paciaroni M, et al. Timing of anticoagulation after recent ischaemic stroke in patients with atrial fibrillation. Lancet Neurol. 2019 Jan;18:(1)117-26.
21. Heidbuchel H, Verhamme P, Alings M, et al. EHRA Practical Guide on the use of new oral anticoagulants in patients with non-valvular atrial fibrillation: executive summary. Eur Heart J. 2013; 34: 2094–106.
22. Meinel TR, Brignoli K, Kielkopf M, et al. Yield of Echocardiography in Ischemic Stroke and Patients With Transient Ischemic Attack With Established Indications for Long-Term Direct Oral Anticoagulant Therapy: A Cross-Sectional Diagnostic Cohort Study. J Am Heart Assoc. 2022 May 3;11:(9)e024989.
23. Vinereanu D, Lopes RD, Mulder H, Gersh BJ, Hanna M, de Barros E Silva PGM, Atar D, Wallentin L, Granger CB, Alexander JH; ARISTOTLE Investigators. Echocardiographic Risk Factors for Stroke and Outcomes in Patients With Atrial Fibrillation Anticoagulated With Apixaban or Warfarin. Stroke. 2017 Dec;48:(12)3266-73.
