Joints, Bones and Congenital Heart Disease… A Forgotten Association?

Gout, as a result of increased red cell turnover and hyperuricaemia, is the most commonly recognised cause of joint disease in patients with cyanotic congenital heart disease. We describe a case of hypertrophic osteoarthropathy (HOA), a far less common cause of bone disease in patients with congenital heart disease. It is now becoming increasingly rare to see HOA in these patients, as surgical correction of most congenital heart defects is now successfully being performed earlier on in life.

Case presentation

A 20 year old male was referred to the Rheumatology Department complaining of bone pains in the upper thighs, legs and forearms over the past year. The pain was present throughout day and was not affected by activity. He denied nocturnal pain, joint swelling, systemic upset, rashes, fever, mouth ulcers or sicca symptoms.

He was born with complex congenital heart disease, in the form of dextrocardia, double outlet right ventricle and subvalvular pulmonary stenosis. At the age of one year, he underwent a palliative Blalock-Taussig shunt in view of worsening cyanosis but over time developed pulmonary vascular disease and subsequent Eisenmenger syndrome. He had been established on advanced pulmonary vasodilators for several years.

On examination, the patient had an oxygen saturation of 62% on room air. He had clubbing of the digits and central cyanosis. There was no evidence of synovitis or joint deformities, but thickening of the distal part of both tibiae was noted. There was no overlying erythema or tenderness. Blood investigations were normal, apart from a high haemoglobin of 20.2 g/dL (14.1 - 17.2 g/dL) with a high haematocrit level of 59.3% (40.4 - 50.4%), slightly elevated uric acid of 507 umol/l (202 - 416 umol/l) and high alkaline phosphatase of 225 U/l (40 - 104 U/l). Autoimmune screen including antinuclear antibody, rheumatoid factor and anti-cyclic citrullinated peptide antibody was negative. Plain X-rays of hands and lower legs showed no abnormalities. Whole body bone scan, Figure 1, showed increased tracer uptake along the diaphyseal and metaphyseal surfaces of both femoral bones and tibiae and to a lesser degree the radius and ulna bilaterally. These findings are in keeping with HOA. The patient was treated with paracetamol and non-steroidal agents. He is being followed up regularly at rheumatology out-patient clinic for evidence of progression of disease.

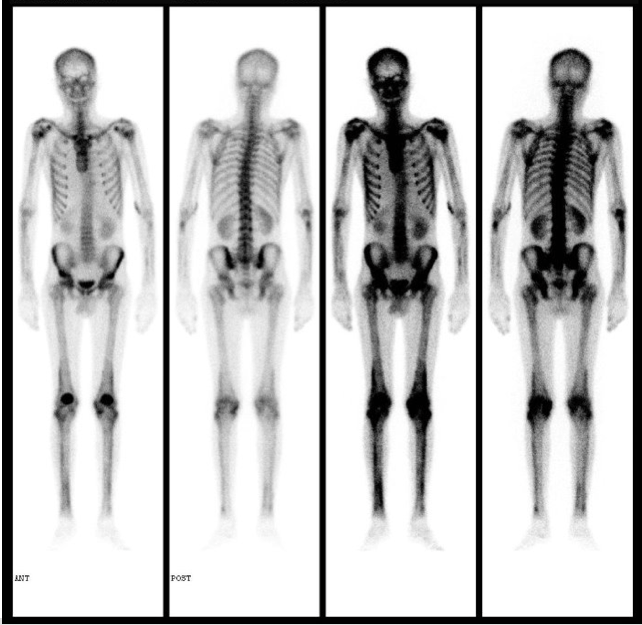

Figure 1

Whole body bone scan. Increased tracer uptake along the diaphyseal and metaphyseal surfaces of the femoral bones and tibiae and to a lesser degree the radius and ulna bilaterally.

Discussion

HOA is characterised by triad of severe disabling arthralgia and arthritis, digital clubbing and periostosis of tubular bones with or without synovial effusion. HOA was first described by Eugen von Bamberger and Pierre Marie in 1890.¹ In rare cases it is inherited as an autosomal dominant condition, known as pachydermoperiostosis. In 95-97% of cases, it is secondary to pulmonary or extrapulmonary diseases, Table 1. The majority of these cases are of pulmonary origin, when it is known as hypertrophic pulmonary osteoarthropathy (HPOA). 90% of these are associated with malignancy. Non-small cell lung cancer (NSCLC), specifically adenocarcinoma, is the most common cause (0.7-17%). Although lower in absolute incidence, a higher percentage of pleural tumours result in HPOA, 22% of solitary fibrous tumours of pleura as compared to 5% of NSCLC.¹

Three pathways for the mechanism of development of HOA have been proposed:

1. Vascular pathway due to secretion of vasoactive agents by the tumour or due to arteriovenous shunting within the pulmonary circulation,
2. Neurogenic pathway triggered by vagal innervation, resulting in vasodilatation and increased blood circulation to the extremities,
3. Hypoxaemia driven surge of circulating growth factors e.g. platelet-derived growth factor, vascular endothelial growth factor (VEGF) and prostaglandin E2.

The latter is the proposed mechanism in patients with cyanotic congenital heart disease.²

Patients with HOA share common features: pleomorphic platelets, giant macrothrombocytes with aberrant volume distribution curves, glomerular enlargement with entrapped megakaryocytic nuclei and high circulating levels of von Willebrand factor antigen.² All these lead to the activation of platelets and endothelial cells, with the subsequent release of growth factors. Electron microscopy shows structural damage to vessel integrity with prominent Golgi complexes, activated endothelia, duplicated capillary basement membranes and perivascular infiltrate. At the level of joints the pathologic changes are dominated by arterial wall thickening.³

There are no specific serological markers of HOA and as a result, the diagnosis of HOA is often delayed. Bone formation markers such as alkaline phosphatase, osteocalcin or amino-terminal propeptide of type 1 pro-collagen may be increased.

Imaging is the mainstay of diagnosis. X-rays typically show symmetrical periostosis of the shafts of tubular bones in the absence of cortical destruction or fracture. The tibia, fibula, radius and ulna are most commonly affected sites. Magnetic resonance imaging shows a low to intermediate signal intensity on T1 and T2 weighted images, highlighting periosteal elevation and reaction.⁴ There are cases where HOA was diagnosed on positron emission tomography by increased fluorodeoxyglucose (FDG) uptake, however there is the risk of an erroneous diagnosis of metastatic disease.⁵ Bone scintigraphy with technetium 99m (99mTc) methylene diphosphonate (MDP) is the gold standard and is the most sensitive test.

The differential diagnosis of HOA includes thyroid acropachy, hypervitaminosis A and a rare autosomal dominant disease known as Camurati Engelmann disease. Voriconazole has been reported to cause periostitis that mimics HOA.

Management of HOA includes treatment of the underlying cause and appropriate analgesia. Other treatment options described include: unilateral vagotomy, in cases of inoperable primary lung malignancies. The procedure was first carried out in the 1950s and was revisited in 2006, however not many cases have been reported in the literature.⁶  Adrenergic blockade with propranolol or phenoxybenzamine was trialled once in 1976.⁷ This option has not been used favourably. NSAIDs, currently the most widely used treatment option, work by blocking the prostaglandin pathway. In fact, opioids are less effective. Octeotride, a VEGF inhibitor, has been shown to limit endothelial proliferation and is highly effective in pain relief.⁸ There are several case reports regarding the symptomatic and therapeutic effects of bisphosphonates, also VEGF inhibitors.⁹ Therapeutic trials are currently being carried out with bevacizumab, a VEGF inhibitor and erlotinib, an epidermal growth factor receptor tyrosine kinase inhibitor, which could show promising results.¹⁰

Conclusion

Bone pains in patients suffering from malignancy, chronic lung disease, liver disease or cyanotic heart disease should raise the suspicion for HOA. Likewise, a new diagnosis of HOA should always trigger a search for the primary cause.

References

1. Chakraborty RK, Sharma S. Secondary Hypertrophic Osteoarthropathy.StatPearls [Internet].2020 Jan [cited 2020 March 23]. Available from: https://www.ncbi.nlm.nih.gov/books/NBK513342/#_NBK513342_pubdet_
2. Kozak KR, Milne GL, Bentzen SM, Yock TI. Elevation of prostaglandin E2 in lung cancer patients with digital clubbing. J Thorac Oncol. 2012 Dec 1;7(12):1877-1878.
3. [Zhang Z, Zhang C, Zhang Z. Primary hypertrophic osteoarthropathy: an update. Front Med 2013 Jan 23;7(1):60-4.
4. Yap FY, Skalski MR, Patel DB et al. Hypertrophic Osteoarthropathy: Clinical and Imaging Features. Radiographics 2016 Dec 9;37(1):157-195.
5. Aparici CM, Bains S. Hypertrophic osteoarthropathy seen with PET/CT bone imaging. Clin Nucl Med 2011 Oct 1;36(10):928-9.
6. Ooi A, Saad RA, Moorjani N, Amer KM. Effective symptomatic relief of hypertrophic pulmonary osteoarthropathy by video-assisted thoracic surgery truncal vagotomy. Ann Thorac Surg 2007 Feb 1;83(2):684-5.
7. Reardon G, Collins AJ, Bacon PA. The effect of adrenergic blockade in hypertrophic pulmonary osteoarthropathy. Postgrad Med J 1976 March 1;52(605):170-3.
8. Birch E, Jenkins D, Noble S. Treatment of painful hypertrophic osteoarthropathy associated with non-small cell lung cancer with octreotide: a case report and review of the literature. BMJ Support Palliat Care 2011 Aug 7;1(2):189-92.
9. Amital H, Applbaum YH, Vasiliev L, Rubinow A. Hypertrophic pulmonary osteoarthropathy: control of pain and symptoms with pamidronate. Clin Rheumatol 2004 May 20;23(4):330-2.
10. Kikuchi R, Itoh M, Tamamushi M, Nakamura H, Aoshiba K. Hypertrophic Osteoarthropathy Secondary to Lung Cancer: Beneficial Effect of Anti-vascular Endothelial Growth Factor Antibody. J Clin Rheumatol 2017 Jan 1;23(1):47-50.
